Question 1

A profile-mode queue is configured with the following attributes: MBS = 10 KB, CBS = 5 KB and High-Priority- Only = 30%. Assume there is no CBS overbooking, and the slope-policy is disabled. If the current queue depth is 8 KB, what will happen to an in-profile packet?

AIt will be discarded because the high-priority-only threshold is exceeded.

BIt will be stored in the queue's reserved buffer space and become out-of-profile.

CIt will be stored in the queue's reserved buffer space and remain in-profile.

DIt will contend for shared buffer space with packets from other queues.

Correct : D

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

AIt will be discarded because the high-priority-only threshold is exceeded.

BIt will be stored in the queue's reserved buffer space and become out-of-profile.

CIt will be stored in the queue's reserved buffer space and remain in-profile.

DIt will contend for shared buffer space with packets from other queues.

0 / 1500

Question 2

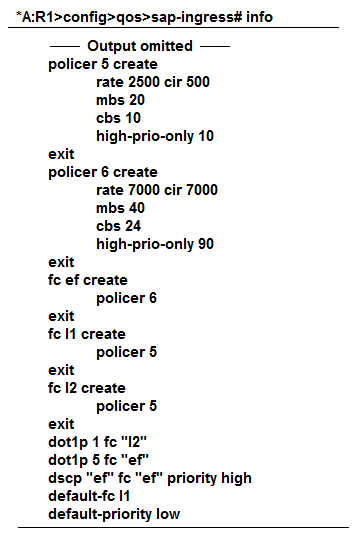

Refer to the exhibit.

According to the SAP-ingress QoS policy shown, which of the following statements about packets processed by policer 6 is TRUE?

AAll forwarded packets will be in-profile

BPackets forwarded above CIR will be marked out-of-profile and the rest will be in-profile

CExcess packets that arrive within a burst larger than CBS will be forwarded as out-of-profile

DAll forwarded packets will be out-of-profile

Correct : C

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

AAll forwarded packets will be in-profile

BPackets forwarded above CIR will be marked out-of-profile and the rest will be in-profile

CExcess packets that arrive within a burst larger than CBS will be forwarded as out-of-profile

DAll forwarded packets will be out-of-profile

0 / 1500

Question 3

How is buffer memory allocated per forwarding complex on a Nokia FP3-based IMM?

A512 MB ingress, 512 MB egress

B512 MB for network ports, 512 MB for access ports

C3.84 GB dynamically allocated between ingress and egress

D2 GB, with a minimum of 512 MB ingress and egress, and an additional 1 GB dynamically allocated

Correct : D

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

A512 MB ingress, 512 MB egress

B512 MB for network ports, 512 MB for access ports

C3.84 GB dynamically allocated between ingress and egress

D2 GB, with a minimum of 512 MB ingress and egress, and an additional 1 GB dynamically allocated

0 / 1500

Question 5

Which of the following statements about port schedulers is TRUE?

AA port scheduler can only be implemented on a network egress port when queue-groups are configured for that port.

BA port scheduler can be implemented on an access ingress port.

CA port scheduler can be implemented without HQoS on an access egress port.

DA port scheduler can be implemented on a network ingress port.

Correct : C

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

AA port scheduler can only be implemented on a network egress port when queue-groups are configured for that port.

BA port scheduler can be implemented on an access ingress port.

CA port scheduler can be implemented without HQoS on an access egress port.

DA port scheduler can be implemented on a network ingress port.

0 / 1500
