Question 1

-- Exhibit --

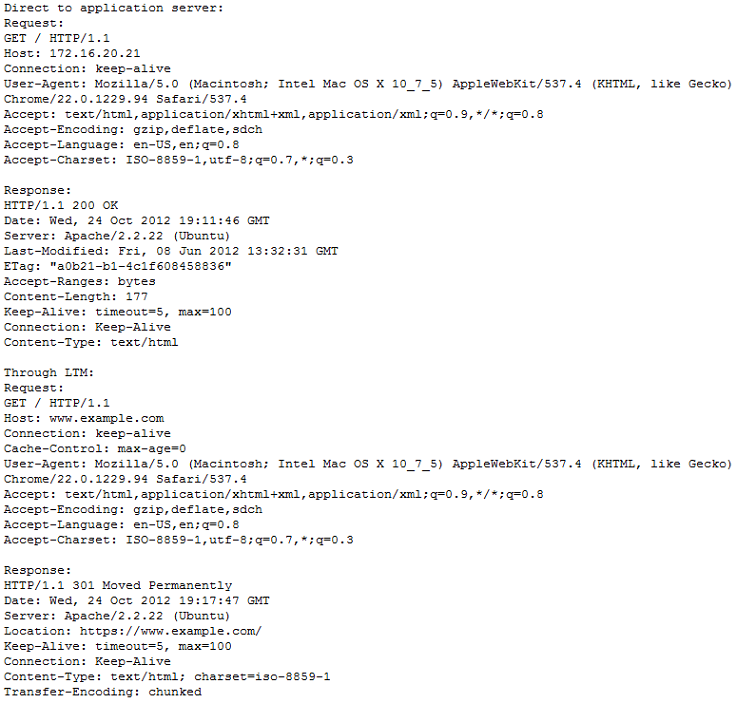

Refer to the exhibit.

An LTM Specialist configures a virtual server to perform client-side encryption while allowing the server-side traffic to be unencrypted. Application owners report that images are failing to load through the virtual server; however, images load when going directly to the server.

What is the problem with the images loading through the virtual server?

AImage references are for HTTP objects, not HTTPS.

BImage references are for HTTPS objects, not HTTP.

CThe virtual server does not have 'SSL Offloading' enabled.

DThe virtual server does not have an HTTP profile associated.

Correct : A

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

AImage references are for HTTP objects, not HTTPS.

BImage references are for HTTPS objects, not HTTP.

CThe virtual server does not have 'SSL Offloading' enabled.

DThe virtual server does not have an HTTP profile associated.

0 / 1500

Question 2

-- Exhibit --

Refer to the exhibits.

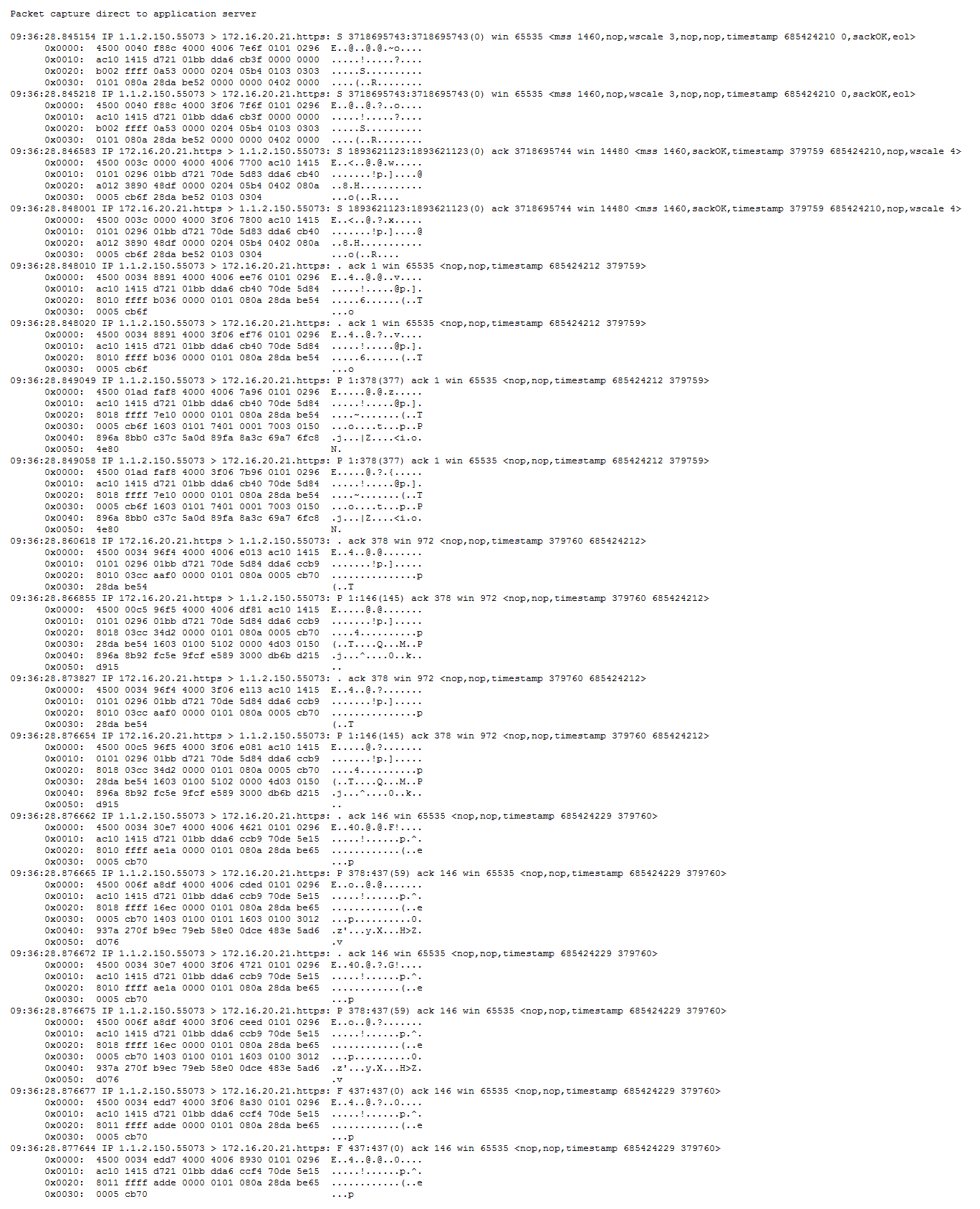

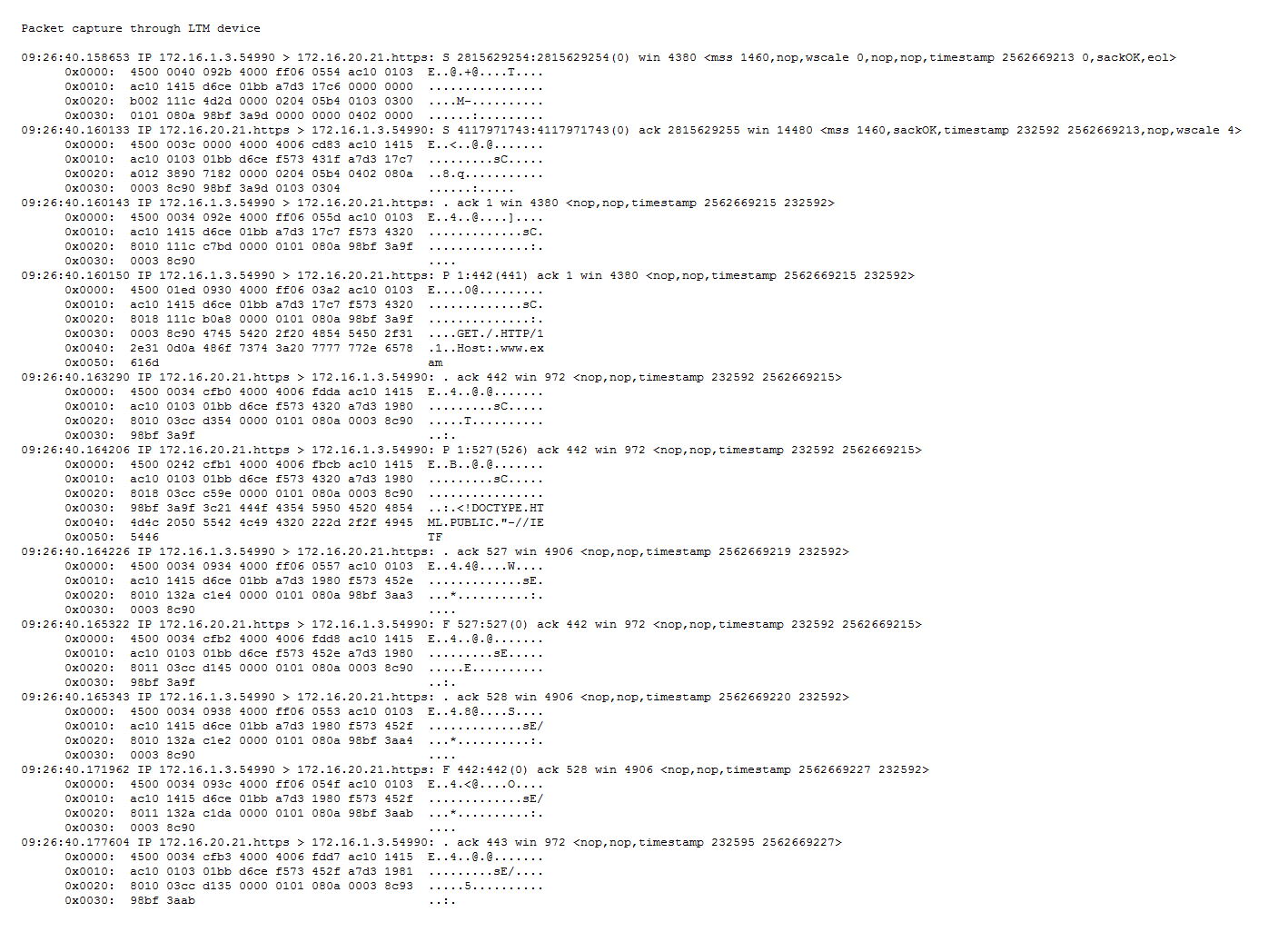

An LTM Specialist has configured a virtual server to distribute connections to a pool of application servers and to offload SSL processing. The application fails to work as expected when connecting to the virtual server. It does work when clients connect directly to the application. Two packet captures were taken at the application server.

What is the root cause of the problem?

AThe application servers are NOT listening on port 80.

BThe LTM device is sending non-SSL traffic to an SSL port.

CThe virtual server does NOT have a clientSSL profile assigned.

DThe SSL handshake between the LTM device and the server is failing.

Correct : B

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

AThe application servers are NOT listening on port 80.

BThe LTM device is sending non-SSL traffic to an SSL port.

CThe virtual server does NOT have a clientSSL profile assigned.

DThe SSL handshake between the LTM device and the server is failing.

0 / 1500

Question 3

-- Exhibit --

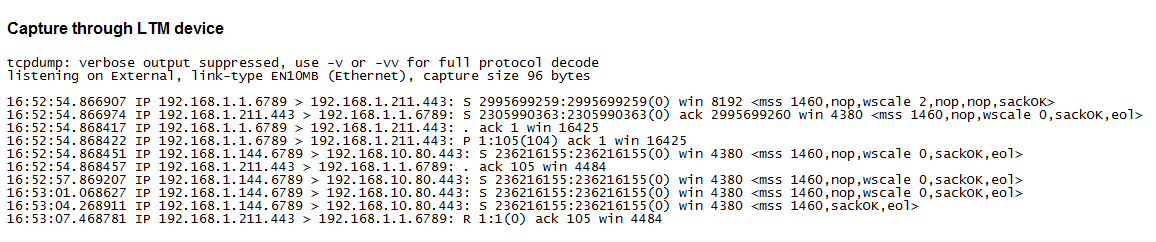

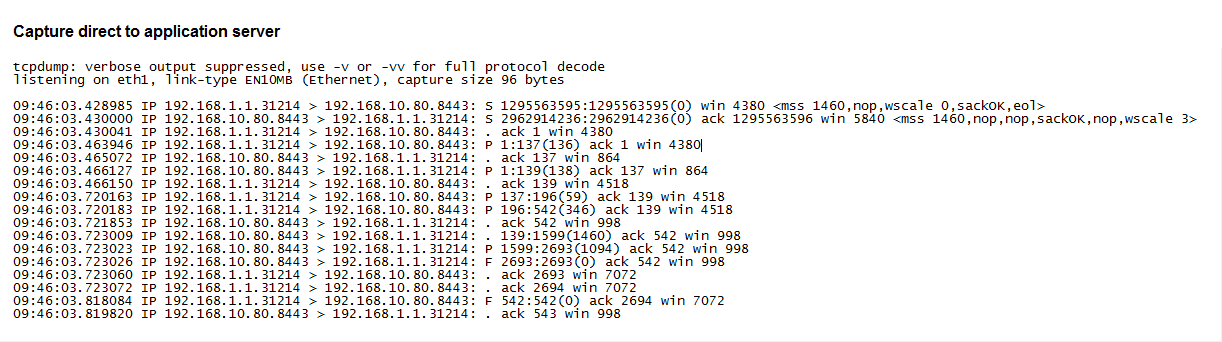

Refer to the exhibit.

An LTM Specialist is troubleshooting an issue with an application configured on an LTM device. The application works properly when accessed directly via the servers; however, it does not work when accessed via the LTM device. The virtual server, 192.168.1.211:443, is configured to SNAT using the address 192.168.1.144 and references a pool with the member 192.168.10.80:443. The virtual server has no Client or Server SSL profiles associated.

Which configuration change will allow the application to function through the virtual server?

AChange pool member port to 8443.

BChange virtual server port to 8443.

CAdd SSL off-loading to the pool member.

DAdd Client and Server SSL profiles to the virtual server.

Correct : A

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

AChange pool member port to 8443.

BChange virtual server port to 8443.

CAdd SSL off-loading to the pool member.

DAdd Client and Server SSL profiles to the virtual server.

0 / 1500

Question 4

-- Exhibit --

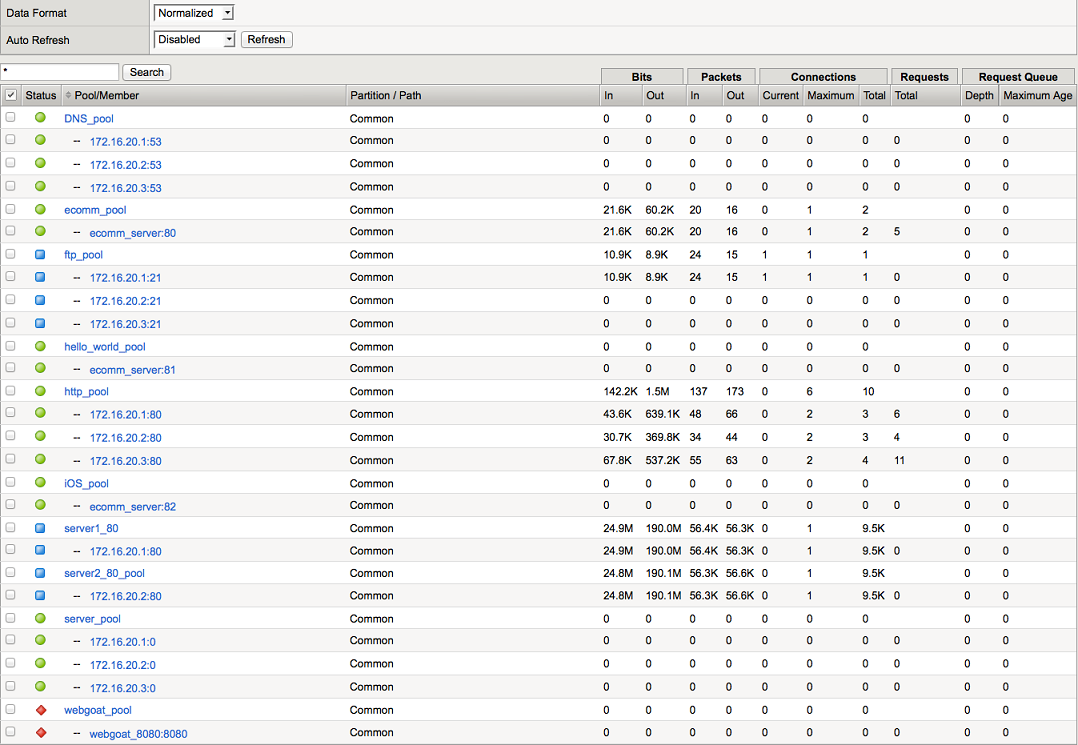

Refer to the exhibit.

An administrator created a monitor to a pool member web server, which resulted in a pool member that is marked red. The administrator knows the web server is working when it is accessed from another computer.

What should the administrator do to correct the problem?

AChange the default gateway on the server.

BCreate a SNAT in the LTM device configuration.

CChange the route to the client in the LTM configuration.

DChange the username and/or password on the monitor.

Correct : D

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

AChange the default gateway on the server.

BCreate a SNAT in the LTM device configuration.

CChange the route to the client in the LTM configuration.

DChange the username and/or password on the monitor.

0 / 1500

Question 5

-- Exhibit --

Refer to the exhibits.

An LTM Specialist is troubleshooting an issue with one of the virtual servers on an LTM device, and all requests are receiving errors. Testing directly against the server generates no errors. The LTM Specialist has captured the request and response on both client and server sides of the LTM device.

What should the LTM Specialist do to fix this issue?

ARemove 'header-erase Host' in http profile.

BConfigure SNAT Automap on the virtual server.

CAssign OneConnect profile to the virtual server.

DSet 'redirect-rewrite' to 'selective' in http profile.

Correct : A

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

ARemove 'header-erase Host' in http profile.

BConfigure SNAT Automap on the virtual server.

CAssign OneConnect profile to the virtual server.

DSet 'redirect-rewrite' to 'selective' in http profile.

0 / 1500
