Question 1

An engineer must replace a defective fabric interconnect with the same model. The system must be restored, including the database of

locally created users. The equivalent Cisco UCS Manager software version must be used. Which backup type must be used to meet these

requirements?

AFull State

BAll Configuration

CSystem Configuration

DLogical Configuration

Correct : A

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

AFull State

BAll Configuration

CSystem Configuration

DLogical Configuration

0 / 1500

Question 2

What is a feature of an electronic programmable logic device upgrade on a Cisco MDS 9000 Series Switch?

AOnly the modules that are being upgraded are disrupted.

BAn EPLD upgrade is disruptive on all modules.

CThe standby supervisor module can perform the upgrade.

DAn EPLD upgrade is nondisruptive on all modules.

Correct : A

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

AOnly the modules that are being upgraded are disrupted.

BAn EPLD upgrade is disruptive on all modules.

CThe standby supervisor module can perform the upgrade.

DAn EPLD upgrade is nondisruptive on all modules.

0 / 1500

Question 3

An engineer implements an Application Performance Monitoring (APM) solution. The solution runs in a vSphere infrastructure where the vSwitch support for promiscuous mode is disabled for security reasons. As a result, the final implementation must receive a copy of bidirectional traffic to a load balancer that is connected to a Cisco Nexus 93108 Series Switch. The APM solution supports GRE encapsulated traffic. Which configuration must be applied to the switch to meet this requirement?

Ainterface vlan1
switchport monitor
destination ip 10.1.1.1
exit
monitor session 1 rx
monitor session 1 tx
source interface ethernet1/9

Bmonitor session 1 both
source interface ethernet 1/9
destination interface ethernet 1/12
erspan-id 1
vrf mgmt0
filter vlan 3
no shut

Cconfigure terminal
monitor session 1 type erspan-source
erspan-id 1
destination ip 10.1.1.1
source interface ethernet 1/9 both
vrf default
no shut

Dinterface ethernet 1/9
erspan-id 1
monitor session 1 type erspan-source
interface mgmt0
monitor session 1 type erspan-destination
destination ip 10.1.1.1
no shut

Correct : C

APM supports ERSPAN. This will be ERSPAN destination. We need source session from switch. https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3850/software/release/16-3/configuration_guide/b_163_consolidated_3850_cg/b_163_consolidated_3850_cg_chapter_01001010.pdf

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

Ainterface vlan1
switchport monitor
destination ip 10.1.1.1
exit
monitor session 1 rx
monitor session 1 tx
source interface ethernet1/9

Bmonitor session 1 both
source interface ethernet 1/9
destination interface ethernet 1/12
erspan-id 1
vrf mgmt0
filter vlan 3
no shut

Cconfigure terminal
monitor session 1 type erspan-source
erspan-id 1
destination ip 10.1.1.1
source interface ethernet 1/9 both
vrf default
no shut

Dinterface ethernet 1/9
erspan-id 1
monitor session 1 type erspan-source
interface mgmt0
monitor session 1 type erspan-destination
destination ip 10.1.1.1
no shut

0 / 1500

Question 4

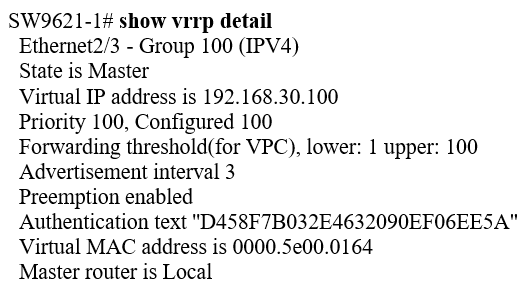

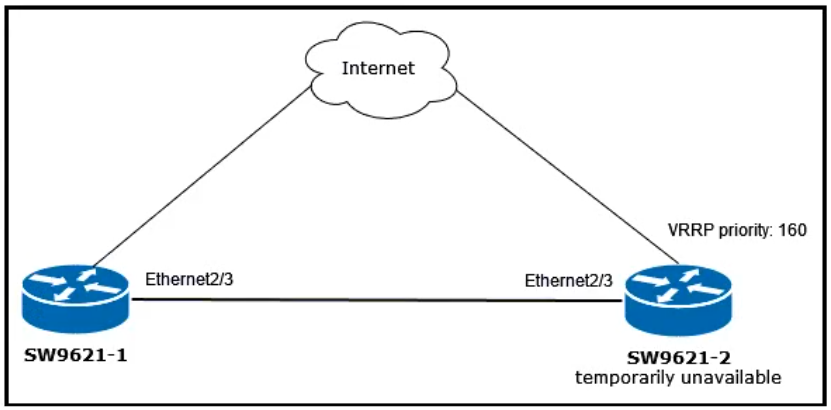

Refer to the exhibit.

What happens to the VRRP configuration when the router SW9621-2 becomes operational?

AThe SW9621-2 router becomes a new active master.

BThe SW9621-1 router becomes a new active master after 3 seconds.

CThe SW9621-1 router remains an active master.

DThe SW9621-2 router becomes an active master after 3 seconds.

Correct : A

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

AThe SW9621-2 router becomes a new active master.

BThe SW9621-1 router becomes a new active master after 3 seconds.

CThe SW9621-1 router remains an active master.

DThe SW9621-2 router becomes an active master after 3 seconds.

0 / 1500

Question 5

What is the impact of a nondisruptive upgrade on fabric and modular switches?

AThe upgrade disrupts the control plane for more than 120 seconds.

BDuring the upgrade, new devices cannot log in to the fabric.

CIf a zone server merge is in progress, the upgrade continues without interruption.

DWhen the installation is complete, the system BIOS must be updated.

Correct : B

Options Selected by Other Users:

Mark Question:

Start a Discussions

Submit Your Answer:

AThe upgrade disrupts the control plane for more than 120 seconds.

BDuring the upgrade, new devices cannot log in to the fabric.

CIf a zone server merge is in progress, the upgrade continues without interruption.

DWhen the installation is complete, the system BIOS must be updated.

0 / 1500
