Master Cisco 300-510 Exam with Reliable Practice Questions

A network engineer recently deployed a wireless network for users at a new office to join video conferences wirelessly The existing network consists of routers that are configured for EIGRP and BGP. which are located at several data centers in different physical locations The engineer configured PIM-SSM within a single domain from a single source However, during the testing phase, the video conference failed to work for any of the users. The IPs are reachable and firewalls in the network are configured correctly to allow the traffic. Which action resolves the issue?

Refer to the exhibit.

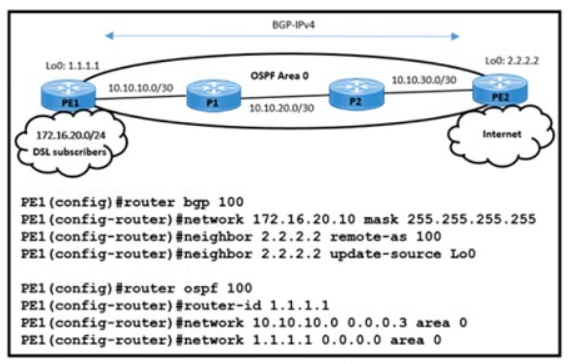

Refer to the exhibit The engineering team noticed route disruptions when DSL subscriber 172.16.20.10 goes offline. In this service provider environment: The OSPF backbone area is configured to advertise loopback prefixes The PE routers are running BGP-IPv4 address family in a BGP-free core topology. The DSL subscriber IP subnet 172.16.20.10/32 is redistributed in BGP on PE1

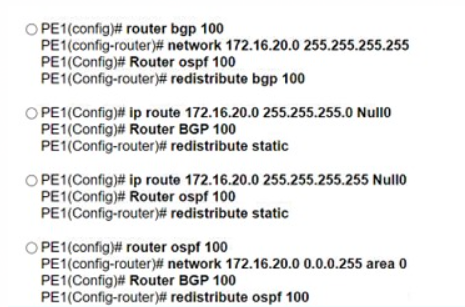

Which configuration on PE1 resolves the issue?

Which technique should be permitted on ASA Firewall to allow MSDP Peering?

Refer to the exhibit.

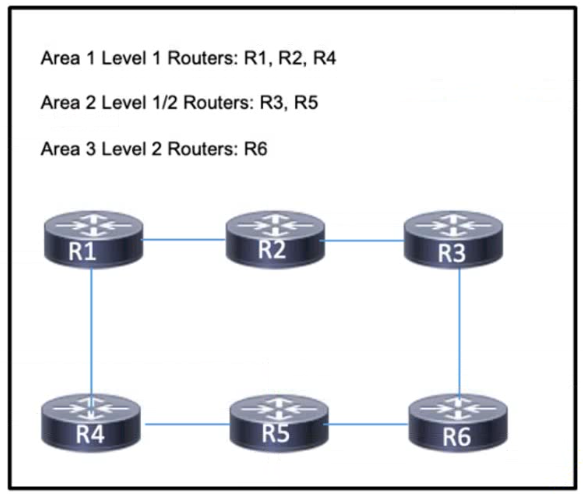

Refer to the exhibit. An engineering team implemented IS-IS on the network, with several different areas. Recently, router R6 in area 3 has been experiencing excessive CPU usage. To reduce the load, a network engineer implemented route summarization on R2 However. R6 is still receiving the full routes from all routers. Which action must the engineer take to resolve the excessive CPU usage?

Refer to the exhibit.

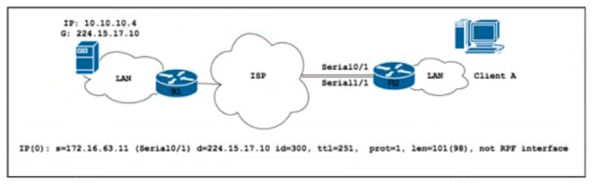

Refer to the exhibit. Mid-sized company Z connected two branch offices via a multicast-enabled ISP using the BGP routing protocol. PIM was implemented to support multicast streaming between the branches via MSDP Client A cannot connect to the multicast stream source of company Z. The network engineer ran a debug on the edge of the network as shown. Which action resolves the issue?
